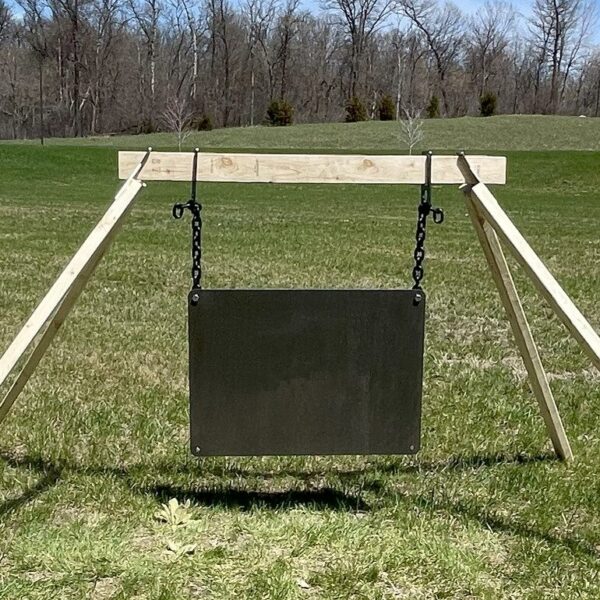

The 3/8" AR500 22"x30" Complete Gong Package gives you the core components needed to build a large-format steel target system, with only standard 2x4 lumber required to complete the stand. The package includes a 22"x30" rectangle gong target, 15" Steel Chain Mounting Kit, Hybrid Hanger Pair and 2x4 Gong Stand Brackets. The target is CNC laser-cut from domestic 3/8" AR500 steel and provides a large full-torso strike face for rifle and pistol training. Made in the USA.
The 22"x30" target weighs approximately 72 lbs. unpainted and uses two 1/2" laser-cut mounting holes. The included chain and Hybrid Hangers allow the target to move on impact for visible and audible feedback. Add a standard 2x4 crossmember and four 2x4 legs to complete the freestanding gong target system.
Specifications
- Target dimensions: 22" wide x 30" high
- Target material: domestic 3/8" AR500 steel
- Target weight: approximately 72 lbs. unpainted
- Mounting: two 1/2" laser-cut holes
What's Included

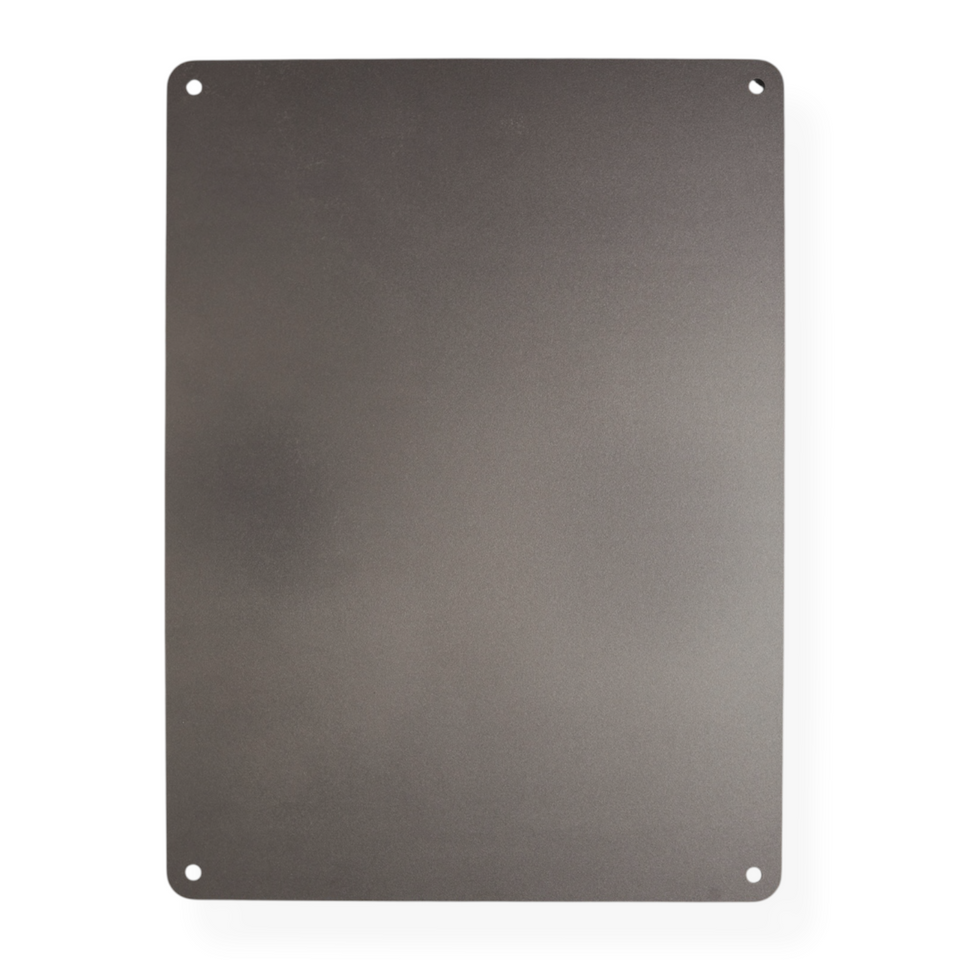

- (1) 22"x30" rectangle gong target, CNC laser-cut from domestic 3/8" AR500 steel

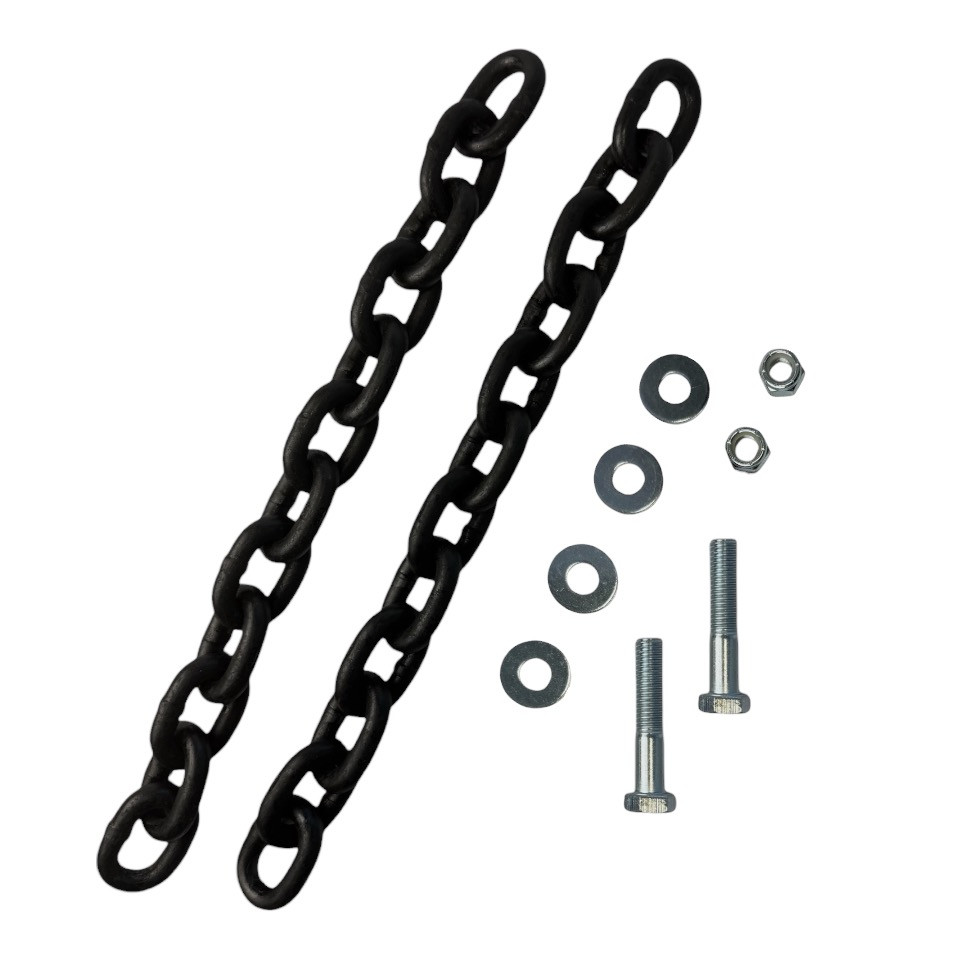

- (1) 15" Steel Chain Mounting Kit

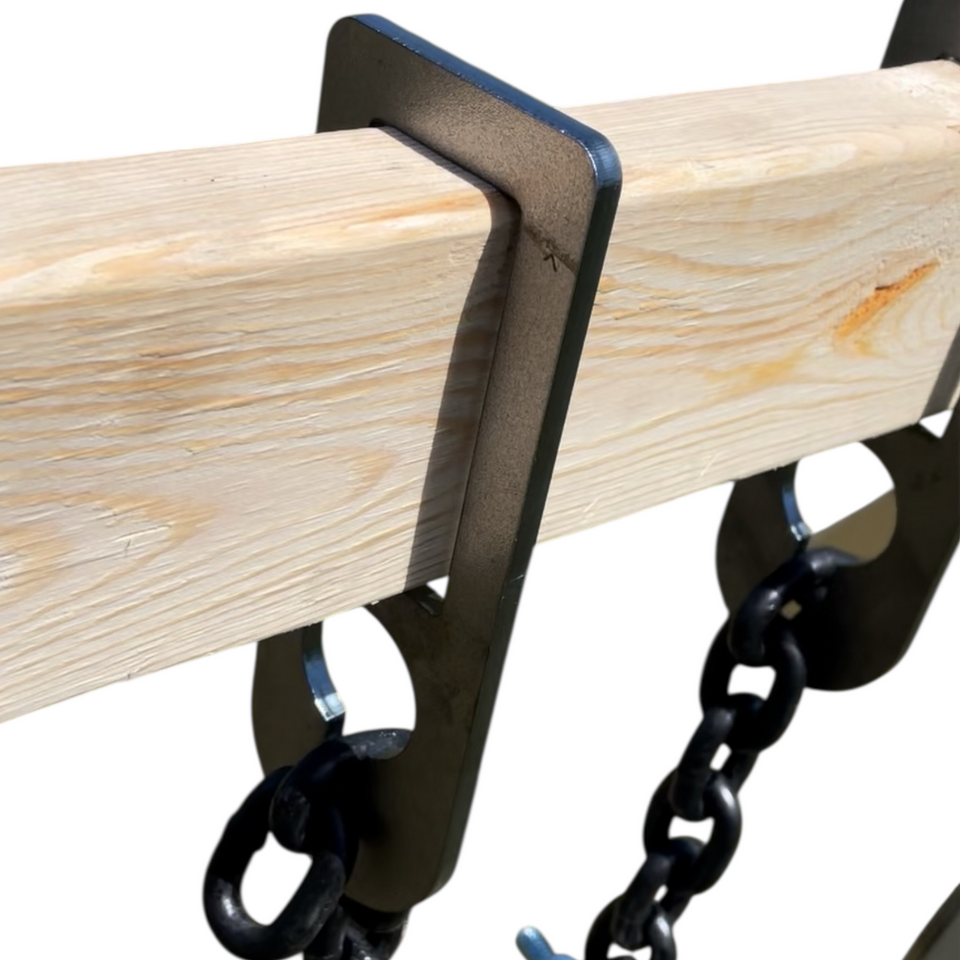

- (1) Hybrid Hanger Pair
- (1) Set of 2x4 Gong Stand Brackets
- Required, not included: Standard 2x4 lumber
- Recommended crossmember: 48-60"
- Recommended legs: Four 60-80" 2x4s
- Not included: Paint
Assembly
- Cut a standard 2x4 crossmember to 48-60"
- Cut four 2x4 legs to 60-80"
- Assemble the stand using the included 2x4 Gong Stand Brackets
- Install the Hybrid Hangers and 15" steel chain
- Hang the 22"x30" gong target and verify the system is secure before shooting
Safety and Usage
Minimum shooting distances:
- Centerfire handgun: 10 yards minimum
- Rifle at or below 3,000 fps muzzle velocity, including .308 Win and 6.5 Creedmoor: 100 yards minimum
- Rifle above 3,000 fps muzzle velocity: 200 yards minimum
- Increase distance any time you observe pitting on the target face
Always shoot perpendicular to the target face. Use quality eye and ear protection. Inspect the target plate, chain, hangers, stand brackets and lumber before every session. Replace any component that shows damage, and replace any plate that shows cratering or severe pitting. Repaint regularly to track impacts and monitor surface health. No steel-core, armor-piercing or tracer ammunition.
FAQs
What comes with the 22"x30" Complete Gong Package?
The package includes one 22"x30" 3/8" AR500 rectangle gong, one 15" Steel Chain Mounting Kit, one Hybrid Hanger Pair and one set of 2x4 Gong Stand Brackets. You supply the 2x4 lumber.
What lumber do I need?
Standard 2x4 lumber is required. A 48-60" crossmember and four 60-80" legs are recommended.
How large is the target?
The target measures 22" wide by 30" high and weighs approximately 72 lbs. unpainted, providing a large full-torso strike face.
How does the target mount?
The target has two 1/2" laser-cut mounting holes and hangs from the included 15" Steel Chain Mounting Kit and Hybrid Hangers.
What shooting distances should I use?
Centerfire handguns require at least 10 yards. Rifles at or below 3,000 fps, including .308 Win and 6.5 Creedmoor, require at least 100 yards. Rifles above 3,000 fps require at least 200 yards. Increase distance if pitting is observed.
Does this package ship painted?
No. Shoot Steel targets ship unpainted. White target paint provides strong contrast downrange for tracking hits.
Is this product made in the United States?
Yes. This product is manufactured in the United States from domestic AR500 steel.
Do you warranty your products?
Yes. We stand behind our products.
Personal and Recreational Use
- Target plates: covered against manufacturing and material defects for 90 days from date of delivery
- Welds: covered for 1 year from date of delivery
- Coverage includes weld integrity, materials and workmanship
Commercial and Range Use
- All components: covered against manufacturing and material defects for 90 days from date of purchase
- Coverage includes weld integrity, materials and workmanship
- Normal wear, pitting, cratering and target face degradation are not covered
To qualify for warranty coverage, targets must be used and maintained in accordance with Shoot Steel safety and distance guidelines, including:
- No steel-core, armor-piercing or tracer ammunition
- Minimum recommended distances observed at all times
- Target mounted to Shoot Steel specifications
Shoot Steel reserves the right to request photos or inspection of any claimed item prior to approval. Misuse and abuse are not covered. Need a copy of our safety guidelines? Email us.
To start a warranty claim, contact customerservice@shootsteel.com with your order number and photos.
