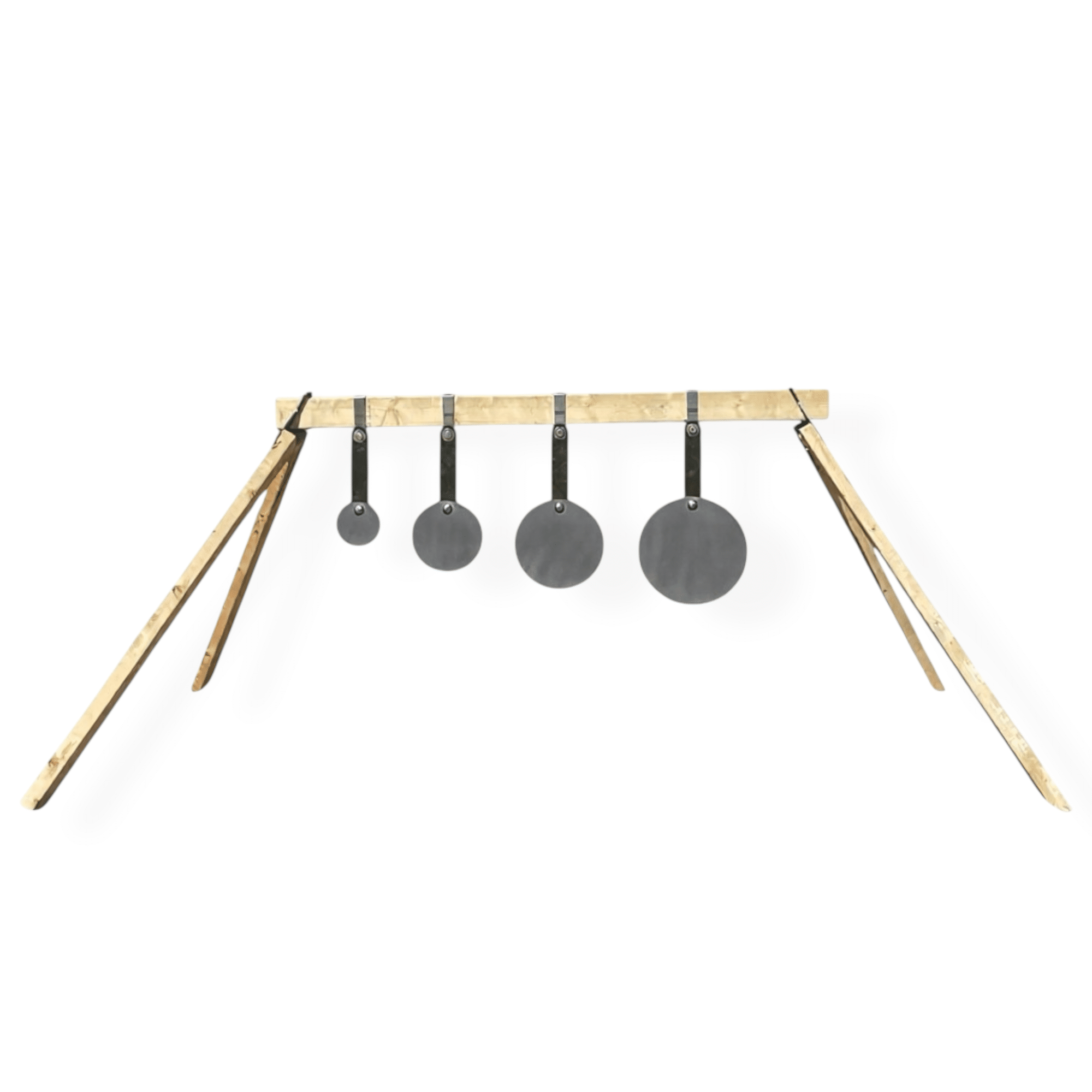

3/8" AR500 KYL Swinging Target Plate Rack

The 3/8" AR500 KYL Swinging Target Plate Rack is a reactive steel target system built around four graduated target sizes for precision drills, transitions and competitive shooting. The package includes 5", 8", 10" and 12" targets, four 8" rubber strap kits, four speed rack hangers and a pair of 2x4 gong stand brackets. Each target is CNC laser-cut from domestic 3/8" AR500 steel. Add your own standard 2x4 lumber to complete the stand. Made in the USA.

The 8" rubber straps allow each target to swing on impact, creating visible movement and strong audible steel feedback. The self-healing rubber is designed to take direct hits and keep the targets hanging, but straps can be replaced as they wear over time. The 3/8" AR500 targets are rated for all centerfire handguns and short-action rifles through .308 Win and 6.5 Creedmoor at the proper minimum shooting distances. For a standard 2x4 setup, the recommended crossmember length is 48-60" with four legs between 60-80". If you prefer conduit legs, use the 2x4 Hybrid Gong Stand Brackets, sold separately.

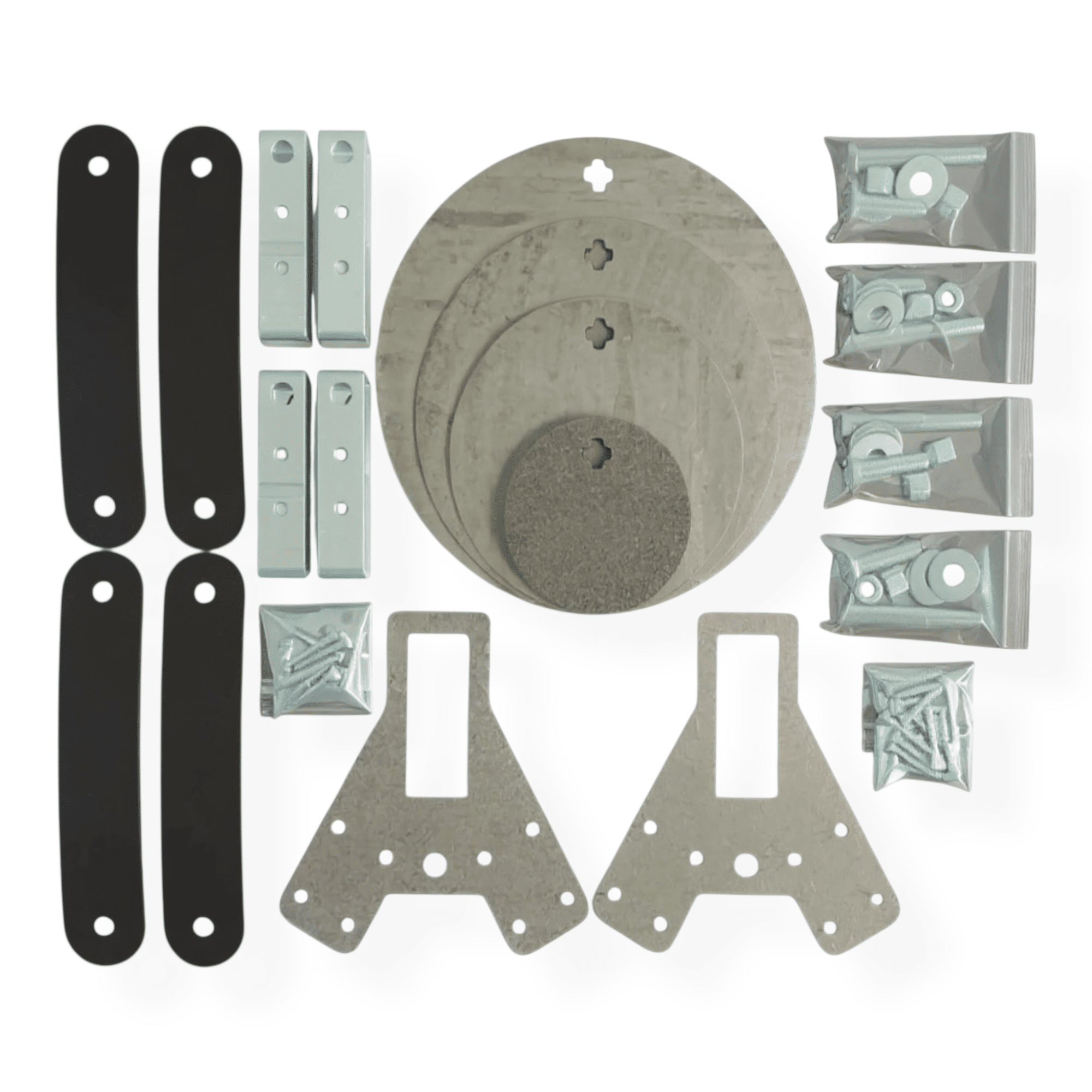

What's Included

• (1) 5" target, CNC laser-cut from domestic 3/8" AR500 steel
• (1) 8" target, CNC laser-cut from domestic 3/8" AR500 steel
• (1) 10" target, CNC laser-cut from domestic 3/8" AR500 steel
• (1) 12" target, CNC laser-cut from domestic 3/8" AR500 steel
• (4) 8" rubber strap kits
• (4) Speed rack hangers
• (1) Pair of 2x4 gong stand brackets
• Required, not included: Standard 2x4 lumber
• Not included: Carriage bolt and spring hardware for the speed rack hangers
• Not included: Paint

Assembly

Build the stand using a standard 2x4 crossmember and four 2x4 legs with the included gong stand brackets. For the recommended setup, cut the crossmember to 48-60" and the four legs to 60-80". Install the speed rack hangers and rubber strap kits, then hang the four targets in your preferred order. Carriage bolt and spring hardware for the speed rack hangers is not included.

For longer-lasting conduit legs with a 2x4 crossmember, the 2x4 Hybrid Gong Stand Brackets are available separately.

Safety and Usage

Minimum shooting distances:

• Centerfire handgun: 10 yards minimum
• Rifle at or below 3,000 fps muzzle velocity: 100 yards minimum
• Rifle above 3,000 fps muzzle velocity: 200 yards minimum
• Maximum rated cartridges: .308 Win and 6.5 Creedmoor
• Increase distance any time you observe pitting on the target face

Always shoot perpendicular to the target face. Use quality eye and ear protection. Inspect the target plates, rubber straps, hangers, brackets, lumber and mounting hardware before every session. Replace any plate that shows cratering or severe pitting and replace worn or damaged straps and hardware before continuing. Repaint regularly to track impacts and monitor surface health. No steel-core, armor-piercing or tracer ammunition.

FAQs

What targets are included in the KYL Swinging Plate Rack?
The package includes one 5", one 8", one 10" and one 12" target. All four targets are CNC laser-cut from domestic 3/8" AR500 steel.

What calibers can I use with this target rack?
The 3/8" AR500 targets are rated for all centerfire handguns and short-action rifles through .308 Win and 6.5 Creedmoor when used at the proper minimum shooting distances.

What makes the targets reactive?
Each plate hangs from an 8" rubber strap that allows the target to swing when hit. This creates visible movement along with strong audible steel feedback.

What do I need to complete the stand?
Standard 2x4 lumber is required and not included. The recommended setup uses a 48-60" crossmember and four 60-80" legs.

Can I use conduit legs instead of 2x4 legs?
Yes. Use the 2x4 Hybrid Gong Stand Brackets, sold separately, to build a setup with conduit legs and a standard 2x4 crossmember.

Are the rubber straps replaceable?
Yes. The self-healing rubber straps are designed for repeated use but will wear over time and can be replaced as needed.

Is all mounting hardware included?
The package includes four rubber strap kits, four speed rack hangers and one pair of 2x4 gong stand brackets. Carriage bolt and spring hardware for the speed rack hangers is not included.

Does this target rack ship painted?
No. Shoot Steel targets ship unpainted. White target paint provides strong contrast downrange for tracking hits.

Is this product made in the United States?
Yes. This product is manufactured in the United States from domestic AR500 steel.

Do you warranty your products?
Yes. We stand behind our products.

Personal and Recreational Use

• Target plates: covered against manufacturing and material defects for 90 days from date of delivery
• Welds: covered for 1 year from date of delivery
• Coverage includes weld integrity, materials and workmanship

Commercial and Range Use

• All components: covered against manufacturing and material defects for 90 days from date of purchase
• Coverage includes weld integrity, materials and workmanship
• Normal wear, pitting, cratering and target face degradation are not covered

To qualify for warranty coverage, targets must be used and maintained in accordance with Shoot Steel safety and distance guidelines, including:

• No steel-core, armor-piercing or tracer ammunition
• Minimum recommended distances observed at all times
• Target mounted to Shoot Steel specifications

Shoot Steel reserves the right to request photos or inspection of any claimed item prior to approval. Misuse and abuse are not covered. Need a copy of our safety guidelines? Email us.

To start a warranty claim, contact customerservice@shootsteel.com with your order number and photos.
